General Specifications

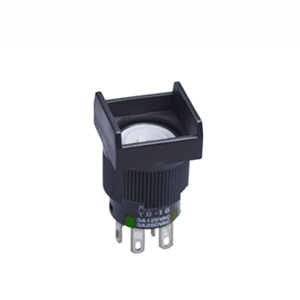

| Part No. | YB16SKW01 |
|---|---|
| Description | Short Body Illuminated Pushbutton Switches |
| Name | ILLUMINATED PUSHBUTTONS |
| Series | YB |
| Poles | SPDT |
| Circuits | On-On |
| Rating | 3 | Illumination | Illuminated |
| Mounting Type | Panel Mount |
| Contact Finish | Silver |
| Actuator Type | Square Cap(Optional Accessory) |
| Panel Cutout Dimensions | 16Dia. |
| Termination Style | Solder Lug |
| Illumination Type | Lamps(Optional Accessory) |
Accessories
- Square Solid Cap/White White:AT3001BB
- Square Solid Cap/Red White:AT3001CB
- Square Solid Cap/Yellow White:AT3001EB
- Square Solid Cap/Green White:AT3001FB
- Square Solid Cap/Blue White:AT3001GB
- Square Cap for Bright LED & Bicolor/Clear White:AT3004JB
- Square Cap for Bright LED & Bicolor/Clear Red:AT3004JC
- Square Cap for Bright LED & Bicolor/Clear Amber:AT3004JD
- Square Cap for Bright LED & Bicolor/Clear Green:AT3004JF
- Square Spot Illuminated Cap with Built-in LED/Red 2V:AT3010C02JA
- Square Spot Illuminated Cap with Built-in LED/Red 2V:AT3010C02JB
- Square Spot Illuminated Cap with Built-in LED/Red 2V:AT3010C02JC
- Square Spot Illuminated Cap with Built-in LED/Red 2V:AT3010C02JE
- Square Spot Illuminated Cap with Built-in LED/Red 2V:AT3010C02JF
- Square Spot Illuminated Cap with Built-in LED/Red 5V:AT3010C05JA
- Square Spot Illuminated Cap with Built-in LED/Red 5V:AT3010C05JB
- Square Spot Illuminated Cap with Built-in LED/Red 5V:AT3010C05JC
- Square Spot Illuminated Cap with Built-in LED/Red 5V:AT3010C05JE
- Square Spot Illuminated Cap with Built-in LED/Red 5V:AT3010C05JF
- Square Spot Illuminated Cap with Built-in LED/Red 12V:AT3010C12JA
- Square Spot Illuminated Cap with Built-in LED/Red 12V:AT3010C12JB
- Square Spot Illuminated Cap with Built-in LED/Red 12V:AT3010C12JC
- Square Spot Illuminated Cap with Built-in LED/Red 12V:AT3010C12JE
- Square Spot Illuminated Cap with Built-in LED/Red 12V:AT3010C12JF
- Square Spot Illuminated Cap with Built-in LED/Red 24V:AT3010C24JA
- Square Spot Illuminated Cap with Built-in LED/Red 24V:AT3010C24JB
- Square Spot Illuminated Cap with Built-in LED/Red 24V:AT3010C24JC
- Square Spot Illuminated Cap with Built-in LED/Red 24V:AT3010C24JE
- Square Spot Illuminated Cap with Built-in LED/Red 24V:AT3010C24JF
- Square Spot Illuminated Cap with Built-in LED/Red Green 2V:AT3010CF02JA
- Square Spot Illuminated Cap with Built-in LED/Red Green 2V:AT3010CF02JB
- Square Spot Illuminated Cap with Built-in LED/Red Green 2V:AT3010CF02JC
- Square Spot Illuminated Cap with Built-in LED/Red Green 2V:AT3010CF02JE
- Square Spot Illuminated Cap with Built-in LED/Red Green 2V:AT3010CF02JF
- Square Spot Illuminated Cap with Built-in LED/Red Green 5V:AT3010CF05JA
- Square Spot Illuminated Cap with Built-in LED/Red Green 5V:AT3010CF05JB
- Square Spot Illuminated Cap with Built-in LED/Red Green 5V:AT3010CF05JC
- Square Spot Illuminated Cap with Built-in LED/Red Green 5V:AT3010CF05JE
- Square Spot Illuminated Cap with Built-in LED/Red Green 5V:AT3010CF05JF
- Square Spot Illuminated Cap with Built-in LED/Red Green 12V:AT3010CF12JA
- Square Spot Illuminated Cap with Built-in LED/Red Green 12V:AT3010CF12JB
- Square Spot Illuminated Cap with Built-in LED/Red Green 12V:AT3010CF12JC
- Square Spot Illuminated Cap with Built-in LED/Red Green 12V:AT3010CF12JE
- Square Spot Illuminated Cap with Built-in LED/Red Green 12V:AT3010CF12JF
- Square Spot Illuminated Cap with Built-in LED/Red Green 24V:AT3010CF24JA
- Square Spot Illuminated Cap with Built-in LED/Red Green 24V:AT3010CF24JB
- Square Spot Illuminated Cap with Built-in LED/Red Green 24V:AT3010CF24JC
- Square Spot Illuminated Cap with Built-in LED/Red Green 24V:AT3010CF24JE
- Square Spot Illuminated Cap with Built-in LED/Red Green 24V:AT3010CF24JF
- Square Spot Illuminated Cap with Built-in LED/Amber 2V:AT3010D02JA
- Square Spot Illuminated Cap with Built-in LED/Amber 2V:AT3010D02JB
- Square Spot Illuminated Cap with Built-in LED/Amber 2V:AT3010D02JC
- Square Spot Illuminated Cap with Built-in LED/Amber 2V:AT3010D02JE
- Square Spot Illuminated Cap with Built-in LED/Amber 2V:AT3010D02JF
- Square Spot Illuminated Cap with Built-in LED/Amber 5V:AT3010D05JA
- Square Spot Illuminated Cap with Built-in LED/Amber 5V:AT3010D05JB
- Square Spot Illuminated Cap with Built-in LED/Amber 5V:AT3010D05JC
- Square Spot Illuminated Cap with Built-in LED/Amber 5V:AT3010D05JE
- Square Spot Illuminated Cap with Built-in LED/Amber 5V:AT3010D05JF
- Square Spot Illuminated Cap with Built-in LED/Amber 12V:AT3010D12JA
- Square Spot Illuminated Cap with Built-in LED/Amber 12V:AT3010D12JB
- Square Spot Illuminated Cap with Built-in LED/Amber 12V:AT3010D12JC
- Square Spot Illuminated Cap with Built-in LED/Amber 12V:AT3010D12JE
- Square Spot Illuminated Cap with Built-in LED/Amber 12V:AT3010D12JF
- Square Spot Illuminated Cap with Built-in LED/Amber 24V:AT3010D24JA
- Square Spot Illuminated Cap with Built-in LED/Amber 24V:AT3010D24JB
- Square Spot Illuminated Cap with Built-in LED/Amber 24V:AT3010D24JC
- Square Spot Illuminated Cap with Built-in LED/Amber 24V:AT3010D24JE
- Square Spot Illuminated Cap with Built-in LED/Amber 24V:AT3010D24JF
- Square Spot Illuminated Cap with Built-in LED/Green 2V:AT3010F02JA
- Square Spot Illuminated Cap with Built-in LED/Green 2V:AT3010F02JB
- Square Spot Illuminated Cap with Built-in LED/Green 2V:AT3010F02JC
- Square Spot Illuminated Cap with Built-in LED/Green 2V:AT3010F02JE
- Square Spot Illuminated Cap with Built-in LED/Green 2V:AT3010F02JF
- Square Spot Illuminated Cap with Built-in LED/Green 5V:AT3010F05JA
- Square Spot Illuminated Cap with Built-in LED/Green 5V:AT3010F05JB
- Square Spot Illuminated Cap with Built-in LED/Green 5V:AT3010F05JC
- Square Spot Illuminated Cap with Built-in LED/Green 5V:AT3010F05JE
- Square Spot Illuminated Cap with Built-in LED/Green 5V:AT3010F05JF
- Square Spot Illuminated Cap with Built-in LED/Green 12V:AT3010F12JA
- Square Spot Illuminated Cap with Built-in LED/Green 12V:AT3010F12JB
- Square Spot Illuminated Cap with Built-in LED/Green 12V:AT3010F12JC
- Square Spot Illuminated Cap with Built-in LED/Green 12V:AT3010F12JE
- Square Spot Illuminated Cap with Built-in LED/Green 12V:AT3010F12JF
- Square Spot Illuminated Cap with Built-in LED/Green 24V:AT3010F24JA
- Square Spot Illuminated Cap with Built-in LED/Green 24V:AT3010F24JB
- Square Spot Illuminated Cap with Built-in LED/Green 24V:AT3010F24JC
- Square Spot Illuminated Cap with Built-in LED/Green 24V:AT3010F24JE
- Square Spot Illuminated Cap with Built-in LED/Green 24V:AT3010F24JF
- Square Cap for Super Bright LED/Clear White:AT3014JB
- Protective Guard/YB:AT4072
- Dust Cover/YB:AT4115
- Spring Loaded Protective Guard/YB:AT4175
- Incandescent Lamp 12V/KB,YB:AT611-12V
- Incandescent Lamp 28V/KB,YB:AT611-28V
- Incandescent Lamp 5V/KB,YB:AT611-5V
- 6-element Bicolor LED/Clear Green/2V:AT621CF02
- 6-element Bicolor LED/Clear Green/5V:AT621CF05
- 6-element Bicolor LED/Clear Green/12V:AT621CF12
- 6-element Bicolor LED/Clear Green/24V:AT621CF24
- Super Bright Single Element LED/Blue:AT625G
- Bright Double Element LED/Red:AT628C
- Bright Double Element LED/Amber:AT628D
- Bright Double Element LED/Green:AT628F
- Super Bright Single Element LED/White:AT631B
- Super Bright Single Element LED/Green:AT632F
- Bright 2- or 4-Element LED/Red 5V:AT634C05
- Bright 2- or 4-Element LED/Red 12V:AT634C12
- Bright 2- or 4-Element LED/Red 24V:AT634C24
- Bright 2- or 4-Element LED/Amber 5V:AT634D05
- Bright 2- or 4-Element LED/Amber 12V:AT634D12
- Bright 2- or 4-Element LED/Amber 24V:AT634D24
- Bright 2- or 4-Element LED/Green 5V:AT634F05
- Bright 2- or 4-Element LED/Green 12V:AT634F12
- Bright 2- or 4-Element LED/Green 24V:AT634F24
